Serie de produse

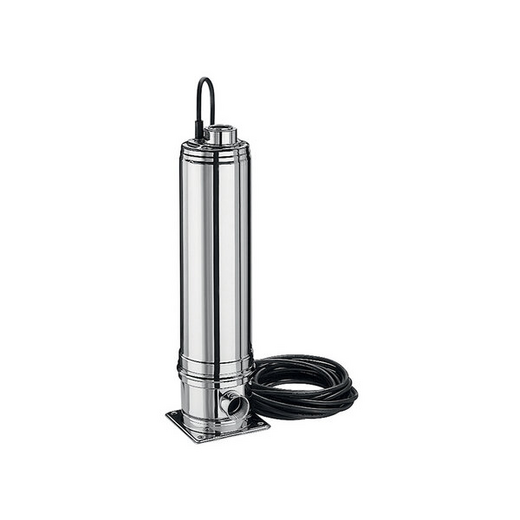

Seria MULTIGO
Cod serie: MULTIGO
Pompe electrice centrifuge multietajate cu componente hidraulice din PPE + PS armat cu fibra de sticla.
20 modele disponibile
Categorie:
Pompe multietajate
Modele din serie
| Model | Cod | Inaltimea maxima de pompare (m) | Debit maxim (m³/h) | Putere motor (kW) | Putere motor (CP) | Turație (rot/min) | Racord aspirare | Racord refulare | Temperatura lichidului (°C) | Diametru rotor (mm) | Material rotor | Presiune maxima de lucru (bar) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MULTIGO 40/8 | 1564040004 |
48 m | 4,8 m³/h | 0,6 kW | 0,8 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 40/8 230/50 | 1564040009 |
48 m | 4,8 m³/h | 0,6 kW | 0,8 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO M40/8 | 1564040021 |
48 m | 4,8 m³/h | 0,6 kW | 0,8 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 40/10 | 1564050004 |
60 m | 4,8 m³/h | 0,75 kW | 1 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 40/10 230/50 | 1564050009 |
60 m | 4,8 m³/h | 0,75 kW | 1 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO M40/10 | 1564050021 |
60 m | 4,8 m³/h | 0,75 kW | 1 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 40/12 | 1564060004 |
72 m | 4,8 m³/h | 0,9 kW | 1,2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 40/12 230/50 | 1564060009 |
72 m | 4,8 m³/h | 0,9 kW | 1,2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO M40/12 | 1564060021 |
72 m | 4,8 m³/h | 0,9 kW | 1,2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 40/15 | 1564070004 |
84 m | 4,8 m³/h | 1,1 kW | 1,5 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 40/15 230/50 | 1564070006 |
84 m | 4,8 m³/h | 1,1 kW | 1,5 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO M40/15 | 1564070021 |
84 m | 4,8 m³/h | 1,1 kW | 1,5 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 104 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 80/12 | 1578060004 |
49,6 m | 7,2 m³/h | 0,9 kW | 1,2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 80/12 230/50 | 1578060009 |
49,6 m | 7,2 m³/h | 0,9 kW | 1,2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO M80/12 | 1578060021 |
49,6 m | 7,2 m³/h | 0,9 kW | 1,2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 80/15 | 1578070004 |
62 m | 7,2 m³/h | 1,1 kW | 1,5 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 80/15 230/50HZ | 1578070009 |
62 m | 7,2 m³/h | 1,1 kW | 1,5 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO M80/15 | 1578070021 |
62 m | 7,2 m³/h | 1,1 kW | 1,5 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 80/20 | 1578080004 |
74,4 m | 7,2 m³/h | 1,5 kW | 2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
| MULTIGO 80/20 230/50 | 1578080009 |
74,4 m | 7,2 m³/h | 1,5 kW | 2 CP | 2800 rot/min | G1 1/4" | G1 1/4" | 40 °C | 102 mm | PPE+PS armat cu fibra de sticla | 10 bar | Detalii |
Seria MULTIGO cuprinde pompe centrifuge multietajate cu randament energetic ridicat.
- Componente hidraulice: PPE + PS armat cu fibra de sticla
- Etansare mecanica: Carbon / Ceramica / EPDM
- Inaltime de pompare: 17 – 76,5 m
- Debit: 1,2 – 12,6 m³/h
- Presiune maxima: 6 – 10 bar in functie de model
- Motor: asincron autoventilat cu 2 poli, IE3 de la 0,75 kW; cablu H07RN-F de 5 m inclus
